Matrix configurations Create all kinds of matrix configurations. Pixel Control includes a complete and powerful patch tool to setup DVI, DMX ArtNet, 3D matrix and LED strips. It can also create a matrix combined with different types of fixtures and with additional type of DMX channels (not RGB).Graphic effects & transitions on 64 universes Shapes your selections to play the desired effects and quickly select your transitions to animate your show. Up to 64 universes management for 32,768 channels, 10,922 RGB pixels or 1280x1024 DVI resolution.Synchronized show to perfectionCreate a synchronized show with your own audio and video files and add marker points in the timeline to specify essentials steps of your show.Great visual effect qualityIntegrate a large number of amazing graphic effects and visuals from a library with audio, videos, animations, shapes, GIF and pictures to make every project unique and beautiful. Just overlay several effects on different layer to get unlimited combination.Easy triggers and patch setupPlay your show via simple trigger buttons. Prepare and program your show in advance and run it through Ethernet, Midi, keyboard, USB device or DMX triggers. All types of paths are possible, like 2D and 3D, multiple matrices, custom shapes, LED strips and high DVI resolutions.
USB interface for 2 DMX universes with 3 lighting control softwares
- LED PC Control (architectural lighting)
- DMX Control (show lighting)
- Pixel Control (pixel mapping and video mixing)
- Compatible with Windows and Mac OS X (requires Open GL 4.0 at least)
- 64 Art-Net universes with 512 channels each on Ethernet
- 32,768 individual channels or 10,922 RGB pixels
- High DVI resolution output (1024 x 768 pixels)
- Supports touch screen controls
- Minimum configuration required: Windows / Mac OS, 2 GHz CPU, 8 GB RAM memory, 2 GB RAM graphic card, 500 MB hard disk, 1 USB port (interface dongle), 1 Ethernet port (Art-Net out)
- Driver software available for download at www.eurolite.de
- Can transmit up to 1024 DMX channels
- Controlling by DMX
- The device can be connected via USB to the PC
Package contents
- 1 x device, 1 x uSB cable
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| Power connection: | Mains input via micro USB (F) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 1024 |

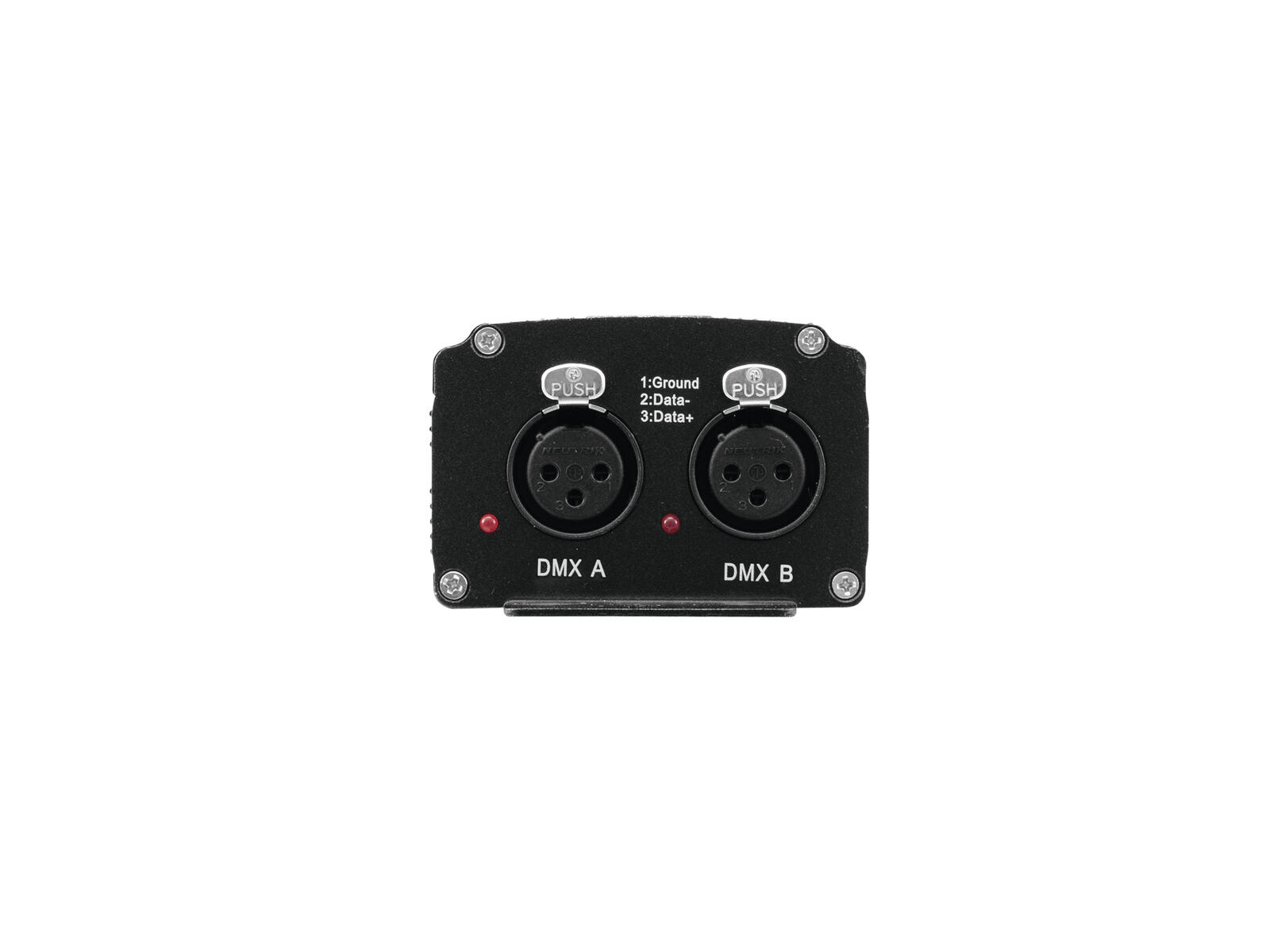

| DMX output: | 2 x 3-pin XLR (F) mounting version |
| Control: | DMX |

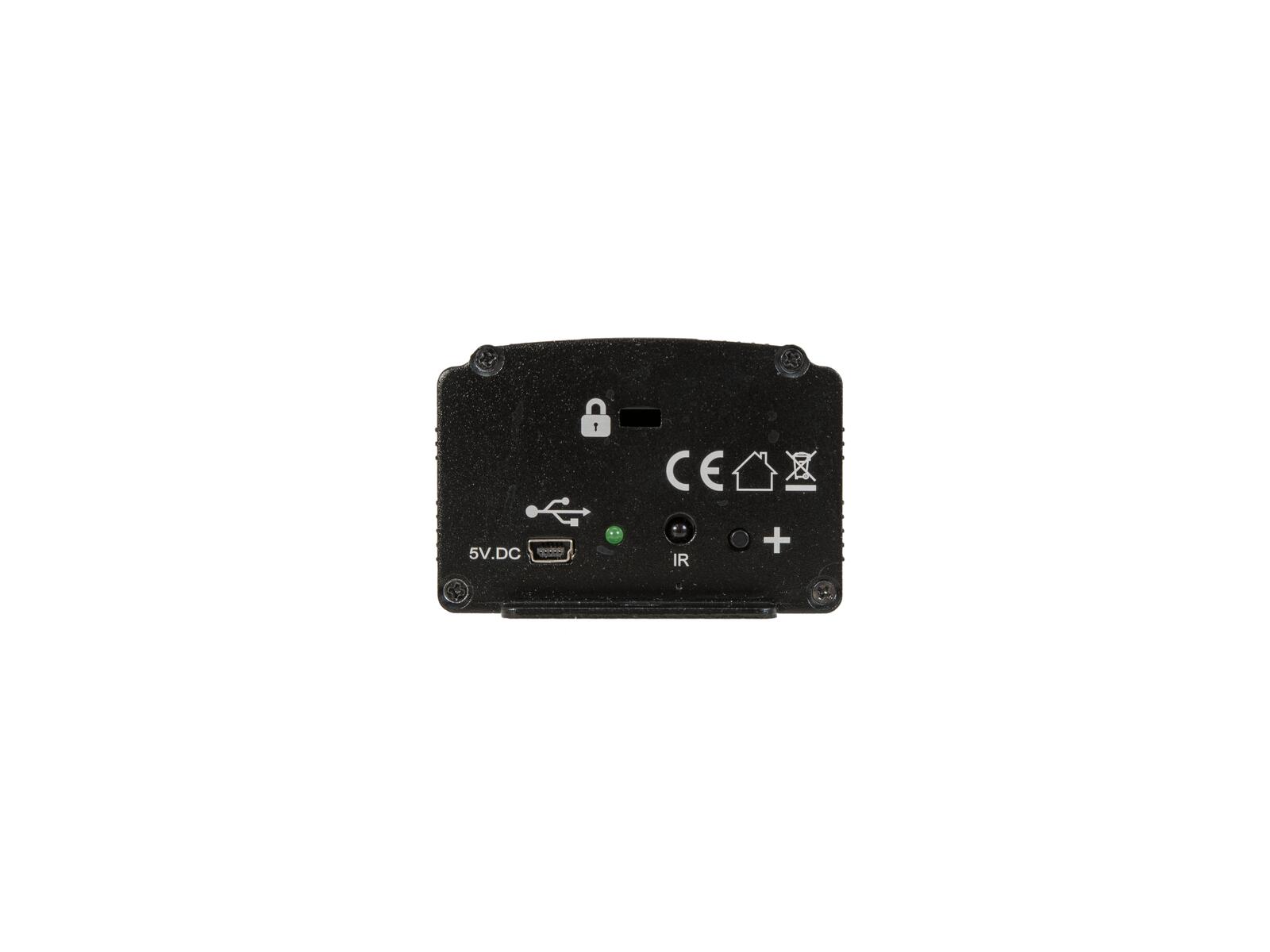

| USB port: | USB 2.0, Typ Mini USB (F) mounting version |
| Color: | Black |
| PC connect: | Via USB |
| Dimensions: | Width: 7 cm
Depth: 9 cm
Height: 4,5 cm |
| Weight: | 180 g |
